PVC Insulated Cables

Code
Price
MYR 0.00


    PVC INSULATED CABLES FOR ELECTRICITY SUPPLY

    DESCRIPTION

    Single core and multi-core cables with copper conductors, PVC insulated, unarmoured or armoured and PVC sheated. The cables have been designed for general use (including underground) where the combination of ambient temperature rise due to load results in a conductor temperature not exceeding 70 degrees.

    Standards complied : MS 274, BS 6346
    Rated voltage : 600/ 1000V

    Download Catalog Here
    (Right Click and Save As)

    PVC INSULATED CABLES FOR ELECTRIC POWER AND LIGHTING

    Download Catalog Here
    (Right Click and Save As)

    PVC INSULATED CABLES FOR AUTOMOBILES

    DESCRIPTION

    This cable is an improved type of AVS cable having thinner conductor and insulation, hence reducing its diameter and weight. The stranded conductor wires of the cable are compressed into a round cross-section,however its performance remains comparable to the AVS cable.

    Download Catalog Here
    (Right Click and Save As)

    PVC INSULATED / PVC SHEATED FLEXIBLE CORDS

    DESCRIPTION

    Circular cords, two or three cores twisted together and sheated with PVC

    • Bare stranded copper conductor
    • Color coded PVC insulation
      2-core : Blue and Brown
      3-core : Green/yellow, Blue and Brown
    • Cores twisted together
    • PVC sheath
    • Rated temperature 70 degrees
    • Rated voltage : 300/300V, 300/500V

    Download Catalog Here
    (Right Click and Save As)

    PVC INSULATED HOOK-UP WIRE

    Download Catalog Here
    (Right Click and Save As)

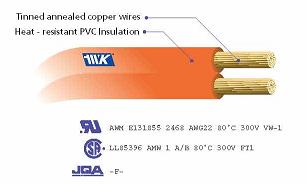

    PVC INSULATED FLAT RIBBON WIRE

    DESCRIPTION

    Application : For internal wiring of appliances
    Rating : 80 degrees, 300V
    Flame test : UL VW-1 & CSA FT1 & JQA F-Mark

    Conductor : Each conductor is made up of plain annealed copper wires. Two conductors laid parallel in one plane

    Insulation : Heat - resistant PVC insulation

    Download Catalog Here
    (Right Click and Save As)
